From the Hades of Greek mythology to Jules Verne’s hole earth, the subterranean world has all the time fascinated humanity. It has been a supply of beneficial minerals and the scene of highly effective volcanic eruptions. At the moment, the underground additionally hosts an intricate community of transport routes that alleviate city site visitors congestion and allow rail programs to perform with out disrupting floor landscapes. Many of those tunnels owe their existence to tunnel boring machines (TBMs)—huge mechanical worms that harness cutting-edge know-how to navigate the hostile environments of the subterranean realm.
On this article, you’ll study in regards to the following matters:
What are tunnel boring machines

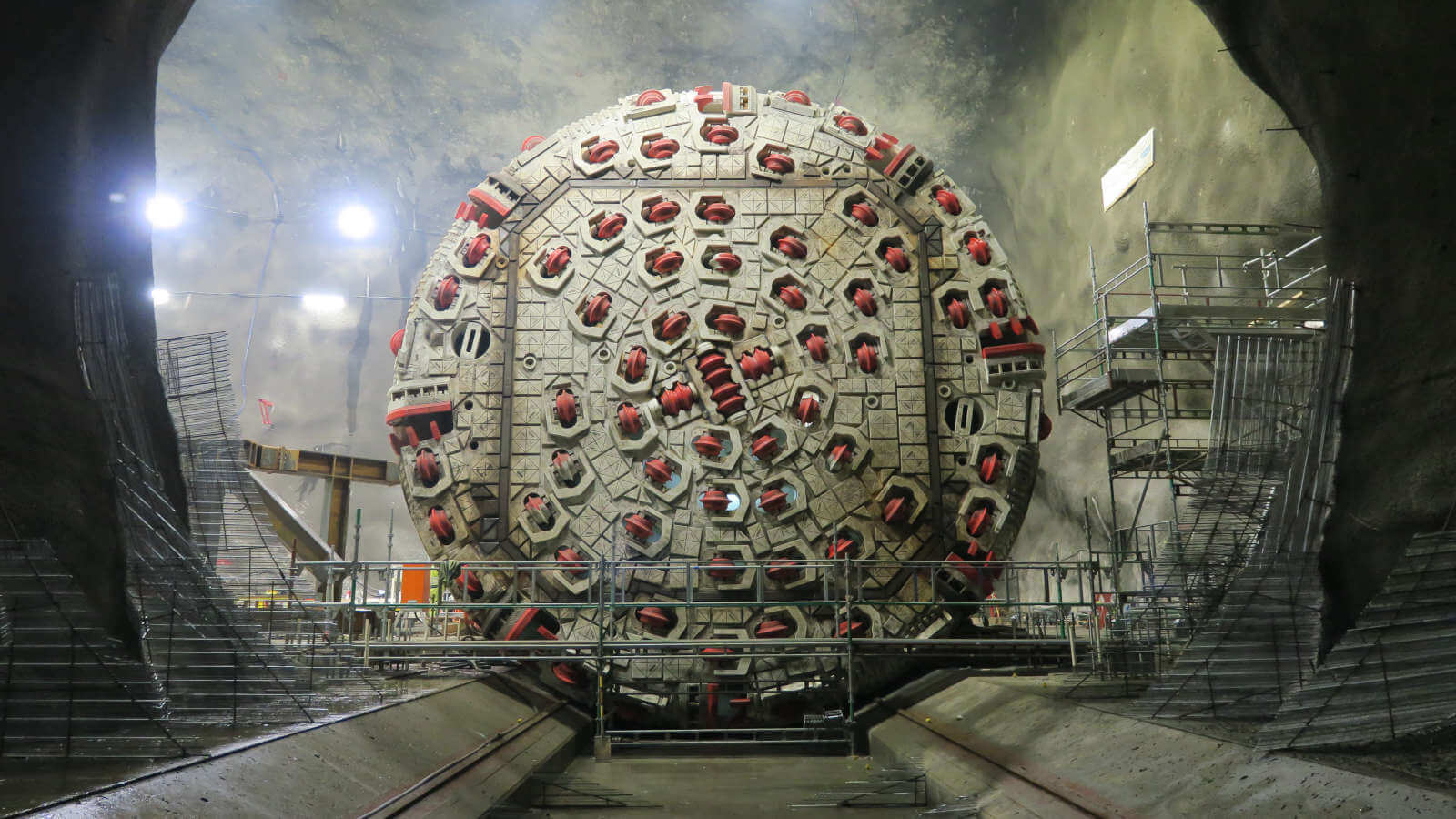

A tunnel boring machine (TBM) is a specialised machine designed for excavating tunnels. Resembling large metallic worms, they function a chopping head on the entrance able to excavating at speeds exceeding one metre per hour. TBMs allow the environment friendly excavation of huge volumes of fabric with distinctive precision, minimising floor disruptions and decreasing the dangers related to underground development.
These machines are huge and sophisticated to function. For context, the biggest TBM measures 120 metres in size, with a chopping head 17 metres in diameter and a weight of roughly 5,000 tonnes.
Essential elements of a tunnel boring machine
TBMs are intricate and big, pushing the boundaries of business car engineering. Past the management programs and the operator’s cabin, these are their key elements:
- Chopping head. The rotating entrance part outfitted with chopping discs or specialised instruments for excavating the bottom.
- Protect. A metallic construction that protects the machine and its operators whereas making certain tunnel stability throughout excavation.
- Propulsion system. Hydraulic jacks that propel the TBM ahead because it progresses.
- Segmentation body. Locations precast concrete segments (referred to as linings) to bolster the tunnel partitions as excavation continues.
- Particles help and evacuation system. Extracts and transports excavated materials, corresponding to rock and soil, out of the tunnel.
5 kinds of tunnel boring machines (and their game-changing tasks)
Because the late twentieth century, tunnel boring machines have performed a important position in main underground infrastructure tasks worldwide. Over time, numerous TBM fashions have been developed to deal with particular challenges. Listed below are 5 key varieties and the long-lasting tasks the place they proved their price.
Earth strain stability (EPB)
EPBs are perfect for smooth, combined, and sandy soils the place sustaining fixed strain is crucial to forestall floor collapse. These broadly used machines allow exact excavation and stabilise the working face, minimising floor disruption.
Line 6 of the São Paulo subway, Brazil (2021-2025). Two TBMs, every 10.6 metres in diameter and weighing 2,000 tonnes, have been outfitted with superior applied sciences to navigate São Paulo’s difficult city geology.
Double protect TBMs
Designed for heterogeneous and rocky terrains, double protect TBMs function two protecting shields to make sure security and precision throughout excavation.
Follo Line, Norway (2016-2022). The development of Scandinavia’s longest railway tunnel (20 km) required TBMs tailor-made to Norway’s geology and outfitted with automated geotechnical monitoring programs.
Slurry TBMs (hydroshield TBMs)
Slurry TBMs use a mix of water and bentonite to stabilise the working face in areas with excessive water strain or unstable soils. They’re significantly efficient for excavating beneath our bodies of water.
Port of Miami underwater tunnel, USA (2010–2014). A 12.86-metre-diameter slurry TBM was used to excavate a 1.2 km underwater tunnel.
Single protect TBMs
These TBMs use a single protecting protect and are greatest suited to secure soils. Though much less frequent right this moment, they have been indispensable for a lot of historic tasks.
M-30 Tunnel, Madrid, Spain (2005-2007). . A TBM with a diameter exceeding 15 metres, a world report on the time, was used to underground a serious part of Madrid’s M-30 ring street.
Essential Beam TBMs (open kind)
Missing a protecting protect, these TBMs are designed for arduous, secure rock. They’re usually utilized in tasks the place extra floor help is pointless.
Hallandsås Tunnel, Sweden (1992-2015). Excavation of an 8.7 km railway tunnel by means of the Hallandsås massif concerned a TBM optimised for arduous rock.
These examples illustrate how every kind of tunnel boring machine is fastidiously matched to the geological circumstances and particular calls for of the venture, making certain optimum efficiency and reliability.
